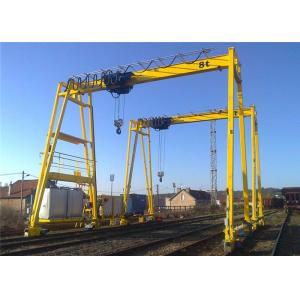

    Electric Single Girder Goliath Gantry Crane Customized

    Ask Lasest Price
    Brand Name : Magicart
    Model Number : MG
    Certification : CE, ISO, SGS, GOST, BV
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : According to customer needs
    Delivery Time : 30000 sets per year
    • Product Details
    • Company Profile

    Electric Single Girder Goliath Gantry Crane Customized

    Customized With Good Quality Factory Electric Single Girder Goliath Gantry Crane


    Product Description


    Single girder gantry crane is widely crane, together with CD, MD, HC model electrical hoist, according to the shape, it also divided into MH type and MHL type gantry crane. MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and non cantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs,which is very convenient and high efficiency. MHL type single girder gantry crane is L type partial hanging gantry crane, with small size and light duty, special for putting steel pipes, girders, or other long materials into the special place, widely used in steel plant, concrete girder yard.


    ​​Drawing and Specification


    Load Capacity (ton)

    Span /Rail Gauge (m)

    Max. Lifting height-H2 (m)

    Duty Class
    15~355~25A3 or A5
    35~355~25A3 or A5
    55~355~25A3 or A5
    105~355~25A3 or A5
    12.55~355~25A3 or A5
    165~355~25A3 or A5
    205~355~25A3 or A5
    325~355~25A3 or A5
    CustomizableCustomizableCustomizableCustomizable

    • Power Supply: 380~460V, 50/60HZ, 3 Phase

    • Single girder design: 1~32 ton

    • Double girder design: 5 to 800 ton

    • FEM class: A5 as standard, A3 as customized options



    Product Advantages


    1. Module control speed, micro-speed and double speed;

    2. Traveling and lifting smoothly;

    3. The power for trolley moving adopts flat cable, sliding smoothly;

    4. Control box layout is reasonable, easy to repair;

    5. Protection class IP55;

    6. Optional main power source ;

    7. All external cable line number with mark;

    8. Safety smooth touch line, high conductivity, small pressure drop;

    9. Light weight, installation convenience;

    10. Set electric taxi speed is high, ensure continuing power supply;

    11. Optional speed control module, and can realize the micro speed and double speed.


    Operation Device


    1. Capsule driver room, eye shot is open,Linkage machine control, easy to operate

    2. Double block button or lever type lever,Smooth operation and accurate

    3. Remote control, no need of professional driver.

    4. Following type or slide-independent, non-following suspension

    5. Protection class IP65

    6. Life of 500000 times; remote control, very easy;

    7. With strong waterproof, fight broke performance



    Product Details



    Certificate


    Installation & Commissioning



    FAQ

    1.Is your product customized?
    Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.


    2. What’s the information should I provide when inquiry?
    Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.


    3. How many operating methods for my selection?
    Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!


    4. What’s the max lifting capacity of the crane?
    Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.


    5. The space of my workshop is limited, can the crane ok for mine?
    Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.


    6. Can the crane work in hazardous environment?
    Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.


    7.Do your side can provide lift tools?
    Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
